Led Grow Light Automatic Medical Plant Growing Greenhouse Light
Deprivation Blackout Herb Greenhouse
Product Advantages
BAOLIDA LIGHT DEPRIVATION GREENHOUSE:
1. Low cost: The interior of the greenhouse is covered with
transparent film, and the exterior is covered with black and white
film. The cost is low and the practicability is strong, which is
used for growing herb, mushroom and other
plants.
2.100% shading: the outer black and white film can achieve 100%
shading effect. The light inside the greenhouse can be adjusted by
rolling up or down the outer film.
3. Strength factory: Our factory has been specialized in
manufacturing greenhouse for 15 years, exporting to North America,
Europe, and other countries.

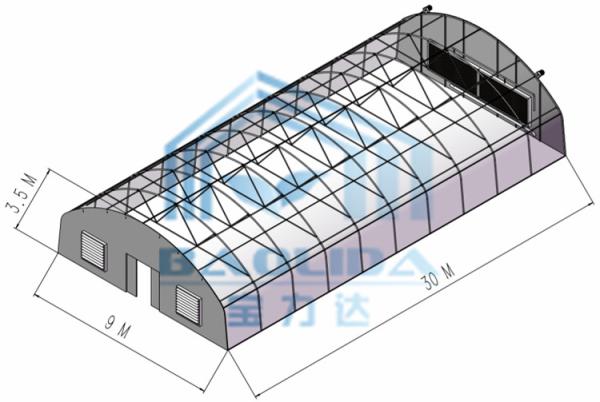

Blackout System
This greenhouse is covered with double layer plastic, the
black-white film outside, and transparent PE film inside. The
electric film rolling system can automatically roll up and down the
film, and adjust the brightness in the greenhouse.
Product Parameter
| Name | Specification | Remarks |
| Length | 105ft, 120ft, 131ft, 144ft | All greenhouse structures and control systems can be customized
according to your requirements. |
| Width | 30ft, 35ft, 40ft, 42ft, 45ft |
| Wind Load | ≤0.45KN/m² |
| Snow Load | ≤0.25KN/m² |
| Load Parameter | 15KG/m² |
| Control System | Automatic Control System for Light Deprivation; |
| Cooling Fan&Pad. Top Ventilation; |
| Temperature/Humidity/Light Control System; |
| 220v, 230v, 380v, ph1, ph3, 50Hz, 60Hz Available. |
| Optional System | Side/Top Ventilation; |
| Lighting System;Cooling/Heating/Dehumidifier System;Drip/Micro
Irrigation System; |
| Ebb&Flow Hydroponic Rolling Bench. |
Product Details
1.Galvanized Steel Pipes
High quality hot-dip galvanized steel structure, Zinc-coating 275
g/m2, service life over 20 years.
All steel materials are field-assembled, no secondary processing
required.
The galvanized connectors and fasteners are not rusted for 20
years.
2.PE Film
| Mechanical behavior | Details | Test method |
| Tensile strength at break (PMa) | Longitudinal: 33 Transverse: 35 | ASTM D882 |
| Elongation at break% | Longitudinal: 600 Transverse: 650 | ASTM D882 |
| Tearing strength (Gf/Micr) | 15 | ASTM D1922 |
| Impact strength (g): 1000 | 1000 | ASTM D1709 |
| Optical performance: (internal standard) | Total light transmittance: ≥91 | |
| Refraction light: ≤20 | |
3. Black and White Film
Thickness:0.13 mm
Shading rate:100% shading
Tensile Strength(Vertical and horizontal):35MPa/35MPa
Elongation at break(Vertical and horizontal):800%/1000%
Right angle tear strength(Vertical and horizontal):100kN/m/110kN/m
Scope of application:herb/mushroom/Animal husbandry
Warranty:5 years
4. Side Ventilation
This greenhouse is covered with plastic film and two ventilation
systems on both sides with insect nets. The manual film roller can
control the upper and lower film coiling, realize ventilation and
adjust the temperature in the greenhouse, which can provide a
suitable growing environmentfor crops, such as herb, mushrooms, and
medical plants.
5.Top Ventilation Roller
The top is equipped with 220V, 100W electric film roller, which can
roll up or put down the black and white film on the su
rface to achieve the shading effect of the greenhouse.(The side
roller also can be electric).
Optional System
LED Grow Light
Passive heat sinking, no fans, no noise.
Waterproof, Can be used more widely than other common led grow
lights.
With Samsung LM301H, newest and best led chip for growing.
Foldable, you can choose any angle you like.
With 0-10V dimmer, can make daisy chain for the dimming.
Cooling system: Exhaust Fan
Frame size: 1380*1380*400 mm
Voltage: 220V,50 HZ 1.1 kw,three phase/double phase/single phase
,custoner have to confirm your local voltage
Fan parameters:
Wind capacity: 48800 m²/h
Blade size: 710 mm
Blade speed: 440 r/min
Motor speed: 1250 r/min
Air quantity: 760 m³/min
Noise: ＜65 dB

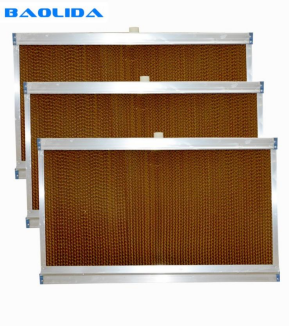

Cooling System: Cooling Pad
size:1.5m*3m
The water inlet adopts φ50PVC water pipe, and the outlet pipe
adopts: φ110
With independent control water pump 220v*1.5-5 KW
Supporting cooling water supply and return system
Parameters:
Component: Inside pipe, Water pump
380V/220V,three phase/double phase/single phase, 3kw 50HZ
Height/H: 1500 mm
Width/W:3000 mm
Thickness: 100mm
With aluminuim frame
Angle corrugation α(°): 45°
Angle corrugation β(°): 45°
Indoor circulating fan
Frame size: 480*480*260 mm
Total pressure: 60 pa
Wind capacity: 5500 m³/h
Effective distance: 16-21 m
Output Power: 120 W
Voltage: 220V,50 HZ 1.2kw,three phase/double phase/single phase
,custoner have to confirm your local voltage
